Infrared gas sensors (Total 23 Products)
Brand: Others
Model Number: prime2
Voltage output Infrared Gas Sensor for Carbon Dioxide1）Operates independent of supply polarity2）Voltage or pellistor mimic bridge output3）Operating voltage range ：3.0V – 5.0V4）Operating current： 80mA typical5）Latest technology MEMS detector...
Brand: No brand
Model Number: AQ-Transmit
Air Quality Transmitter—AQ-Transmit The AQ-Transmit determines with the help of a specific two-beam infrared photometer, the concentration of carbon dioxide in the air mixture at an ambient temperature of -10 to +50°C (measuring range 0-3,0...
Model Number: AQ-Control
Air quality monitor with Relays—AQ-ControlThe AQ-Control carbon dioxide measuring system is specially designed to monitor indoor air quality. With the aid of two independent relay contacts, it can control automatic window openers, air condi...
Model Number: AQ-Climate
Air Quality Interior Climate Monitor—AQ-Climate The AQ-Climate Control is a network-compatible sensor system that measures important parameters of the interior climate: air quality by means of the carbon dioxide content, relative humidity a...

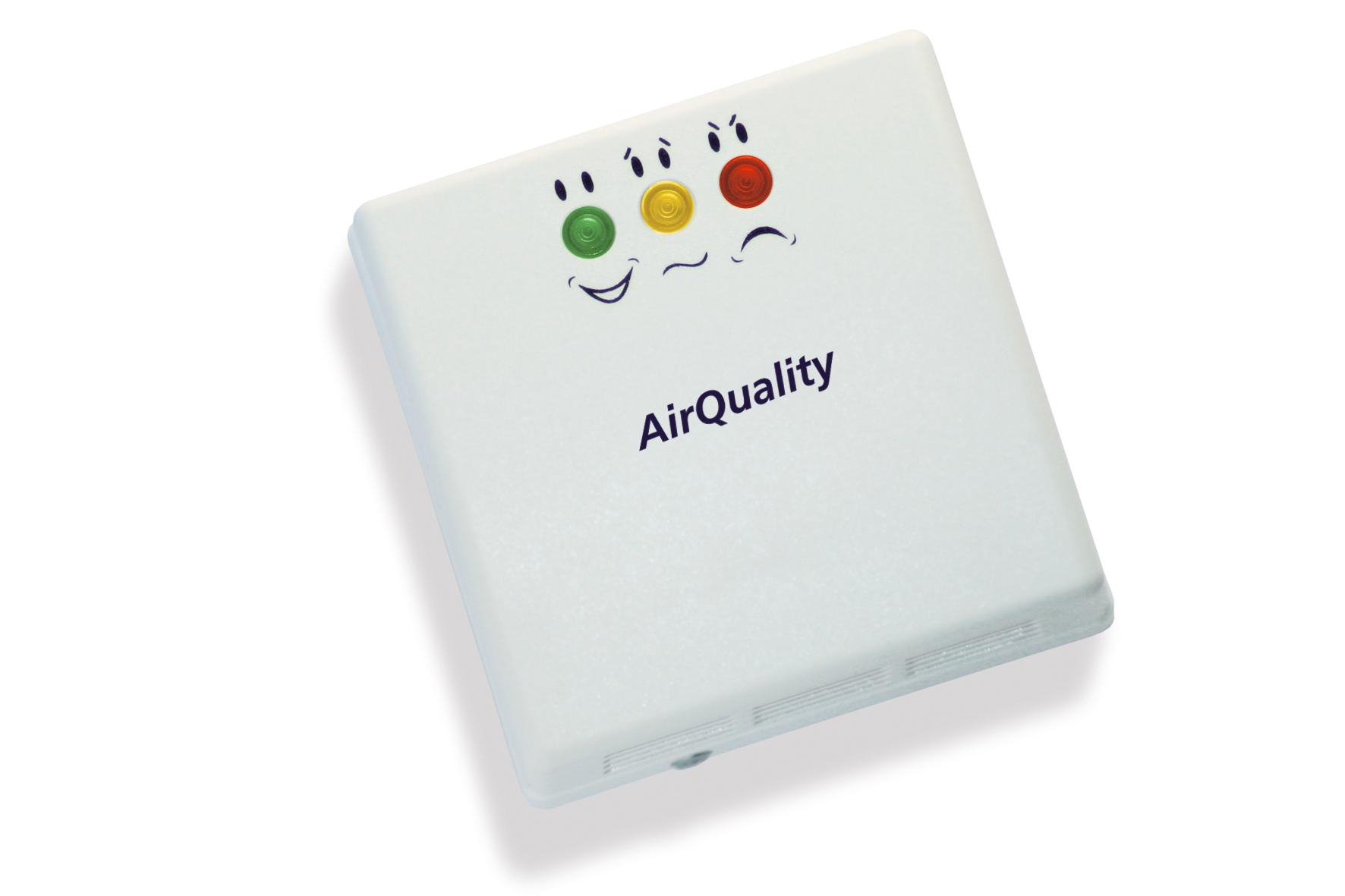

Model Number: AQ-Alert
Air quality monitor—AQ-Alert 1）A green light corresponds to a CO2 concentration of less than 1500 ppm: air quality is o.k. 2）A yellow light indicates 1500 to 2500 ppm CO2, and a short beep sounds: air is of low quality and ventilation is re...
Model Number: Cirius-3
Features1) Temperature compensated detectors2) Sensing ranges: 0-5% volume Carbon Dioxide to 0-100% volume Carbon Dioxide3) All metal construction4) Small internal volume5) ‘Light locked’: not affected by external illumination6) Low power7)...
Model Number: Cirius-2
Features1) Temperature compensated detectors2)Sensing ranges: 0-5000ppm Carbon Dioxide to 0-5% volume Carbon Dioxide3)All metal construction4)Small internal volume5)‘Light locked’: not affected by external illumination6)Low power7)Active an...

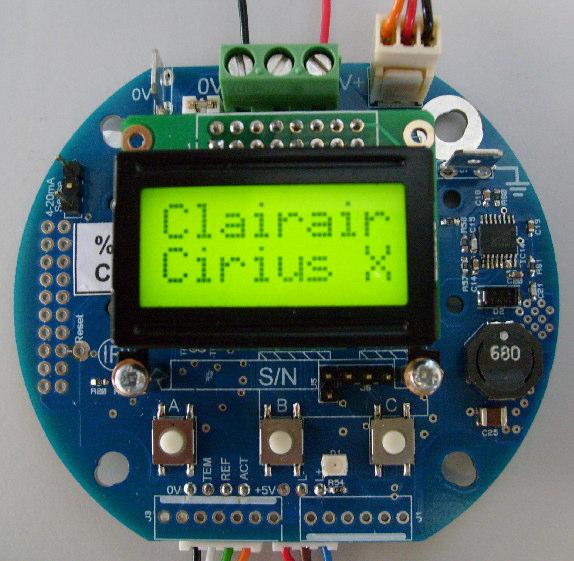

Model Number: Cirius-X
OEM 4-20mA Transmitter for NDIR Gas Sensors (Methane/Carbon dioxide)Description:The Cirius X OEM 4-20mA transmitter is an extremely flexible transmitter for NDIR gas sensors providing a robustlinear 4-20mA output in response to signals from...
Brand: Alphasense
Model Number: Cirius-1
Miniature Infrared Gas Sensor for Hydrocarbons Cirius-1Features1)Sensing ranges: 0-100% LFL Methane, 0-100% LFL Hydrocarbons and 0-100% volume Methane2)All metal construction3)Small internal volume4)‘Lightlocked’: not affected by external i...
Brand: GSS
Model Number: C20
LED NDIR carbon dioxide CO2 Sensor C20 --miniature solid state LED NDIR CO2 SensorApollo Technology Co., Ltd. specializes in infrared carbon dioxide sensor C20 / infrared CO2 sensor C20, welcome you to inquire the price C20 infrared carbon ...
Model Number: COZIR- wide range
COZIR is an ultra low power (3.5mW4), high performance CO2 sensor,ideally suited for battery operation, portable instruments and HVAC. Based on GSS IR LED and Detector technology, and innovative optical designs, the COZIR offers the lowest ...
Model Number: COZIR- ambient
Model Number: C20B
General Description:The C20B is a carbon dioxide designed specifically for educational applications. The C20B provides fully temperature compensated readings of Carbon Dioxide (CO2) concentrations from 0 to 65% , over the temperature range ...
Model Number: SprintIR
SprintIR is a high speed (20 Hz) CO2 sensor, ideally suited for applications which require capture of rapidly changing CO2 concentrations including metabolic assessment and analytical instrumentation.(1) High speed sensing (20Hz)(2) Measure...
Model Number: COZIR-Probe
(1) Ultra-low Power 3.5mW(2) Measurement ranges from 5%to 100%(3) 3.3V supply.(4) Peak current only 33mA.(5) Optional Temperature and Humidity Output...
Model Number: IRC-AT
IRC-AT CARBON DIOXIDE INFRARED SENSOR Range： 0-5000ppm 0-5%vol 0-20%volFS Resolution ： 25ppm 250ppm 0.4%Accuracy ： 1%FS 1.5%FS 2.5%FSResponse time (t90) ： < 40s Temperature range： -20°C to +50°C Operating life： > 5年 Size ：Φ20.0×16.5mm...

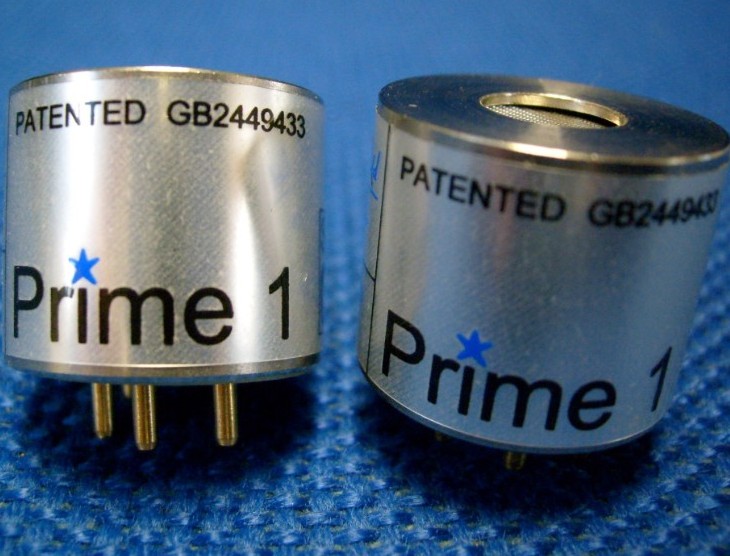

Model Number: Prime1
High Resolution Methane Infrared Gas Sensor1）High Resolution of 0.01%vol for 0 - 10% vol and 0.1% vol for 10 - 100% vol2）Operates independent of supply polarity3）Pellistor mimic Bridge or linear voltage output4）Operating voltage range 3.0V ...
Model Number: IRC-A1
IRC-A1 CARBON DIOXIDE INFRARED SENSOR Range： 0-5000ppm 0-5%vol 0-20%vol 0-100%vol FS Resolution ： 15ppm 100ppm 500ppm 0.5%vol Accuracy ： 1%FS 1.5%FS 2.5%FS 4%FS Response time (t90) ： < 40s Temperature range： -20°C to +50°C Operating life： >...
Brand: MUT
Model Number: CO2-LC
CO2 sensor module CO2-LC 1) accuracy: 2%FS 2) output: 4-20Ma 3) detection range: 0-100%(10%.30%) 4) response time: 10s 5) temperature range: 10-40℃ 6) size: 110x160x50mm...
Brand: GE
Model Number: 6004
CO2 OEM Module-6004three different measurement range for choicing,meet different needs perfectly!Telaire 6004 CO2 OEM Module Options The 6004 CO2 OEM module is available in many different options. The optional items include measurement meth...
